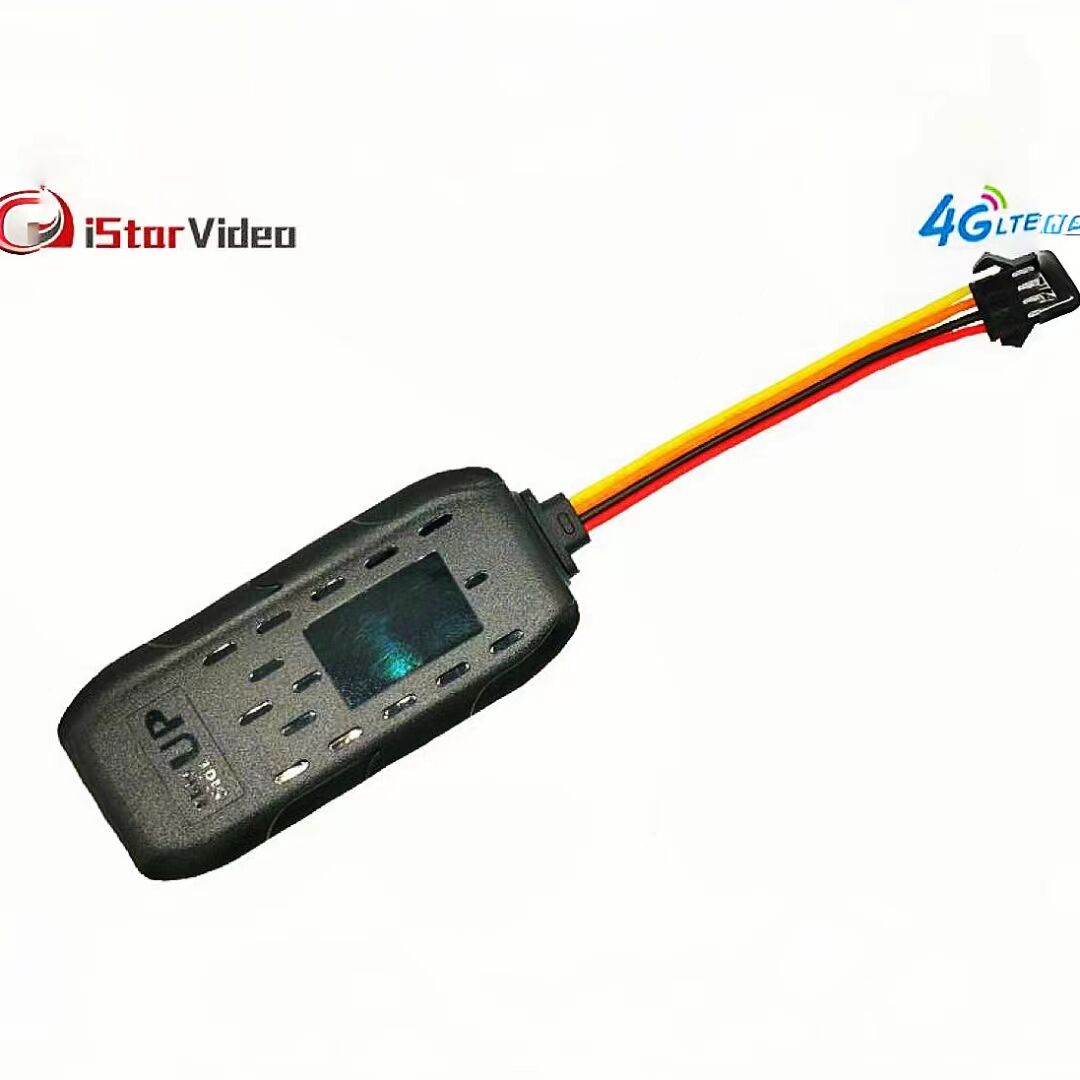

4G Car GPS Tracker, Rain Proof, Cat-1 Mode,GPS+BDS+GLONASS Simultaneous Signal Reception, Low Battery SOS Alarm
$56.65
- Description
Description
| Model Number | iSV-GTY18(4G)-#6370 | ||||
|---|---|---|---|---|---|
| Brand Name | iStarVideo | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:
iSV-GTY18,4G Car GPS Tracker,Cat-1 Mode,GPS+BDS+GLONASS Simultaneous Signal Reception, Rain Proof, Low Battery SOS Alarm
Main Feature:
* 4G LTE Cat1 Communication Mode
* ZKM AT6558 GPS Location IC
* GPS+BDS+GLONASS Simultaneous Signal Reception
* Built-in 80mAh/3.7V Battery, Support Working 1-2 Hours
* APP Application, iOS and Google Android
* Support Geo-Fence Alarm
* Support SOS Alarm
* Support Over Speed Alarm
* Support Low Battery Alarm
* Support Movement Detection
* Support ACC Detection
* Support Kilometer Report
* Support Oil Cut Off
* Support Vibration Alarm
* Voltage: 9-90VDC, Suitable for All Types Of Vehicles
* IP65 Rain Proof
Specification:
| Model |
iSV-GTY18(4G) |
|
| Hardware specifications |
Communication Mode |
4G LTE &Cat1 + 2G &GSM |
| Communication Band |
LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 GSM: 850/900/1800/1900MHz |
|
| Data Transmission |
CAT1: UL 5Mbps, DL 10Mbps |
|
| Working Voltage |
9-90VDC |
|
| Average Current |
38mA@12VDC |
|
| RF Power Class |
Cat1: Class 3 (Typ. 23dBm) |
|
| RF Antenna |
FPC, Built in Machine |
|
| GPS IC |
ZKM AT6558 |
|
| GPS Antenna |
25*25*4mm, Built in high-precision ceramic antenna |
|
| Backup Battery |
Li-Polymer Battery, 80mAh/3.7VDC |
|
| Working Time |
1-2 hours |
|
| LED Indicator |
2 LED: GPS-Blue LED, Network-Red LED |
|
| SIM Card |
NANO SIM |
|
| Interface Definition |
4Pin I/o: B+, GND, ACC, Relay 8Pin I/o: B+, GND, ACC, Relay, SOS, Micphone |
|
| Waterproof |
IP65, Rain Proof |
|
| Working Temperature |
-20°C – 70°C |
|
| Operating Humidity |
5% to 95% |
|
| Net Weight |
46g |
|
| Product Size |
LxWxT: 83*38*14mm |
|
| Locate information |
GPS IC |
ZKM AT6558 |
| Working Current |
23mA@3.3V (BDS+GPS) |
|
| Signal Reception |
BDS/GPS/GLONASS/GALILEO/QZSS/SBAS |
|
| Parallel GNSS |
BDS+GPS+GLONASS+Galileo Simultaneous Reception |
|
| GPS Channels |
GPS:1575.42 / BDS:1561.098 / Glonass:1602 MHz / Galieo:1575.42 |
|
| Tracking Sensitivity |
-162 dBm |
|
| Acquisition Sensitivity |
-156 dBm |
|
| GPS Starting Time/TTFF |
Hot Start ≤ 1 sec(open sky） |
|
| Recapture: ≤ 1 sec |
||
| Cold Star: ≤ 30 sec(open sky) |
||
| GPS Position Accuracy |
<2m (1σ) |
|
| Timing Accuracy |
<30ns (1σ) |
|
| Update Frequency |
Max: 10Hz |
|
| Software function |
Data Transmit |
TCP, SMS |
| Geo-Fence Alarm |
Support |
|
| SOS Alarm |
Support |
|
| Over Speed Alarm |
Support |
|
| Low Battery Alarm |
Support |
|
| Movement Detection |
Support |
|
| Kilometer Report |
Support |
|
| ACC Detection |
Support |
|
| Oil Cut Off |
Support |
|
| Vibration Alarm |
Support |
|
| Service platform |
History playback |
Support 1 Months (Refer to the actual support time of each service platform for details) |
| APP Application |
iOS and Android APP |
|
