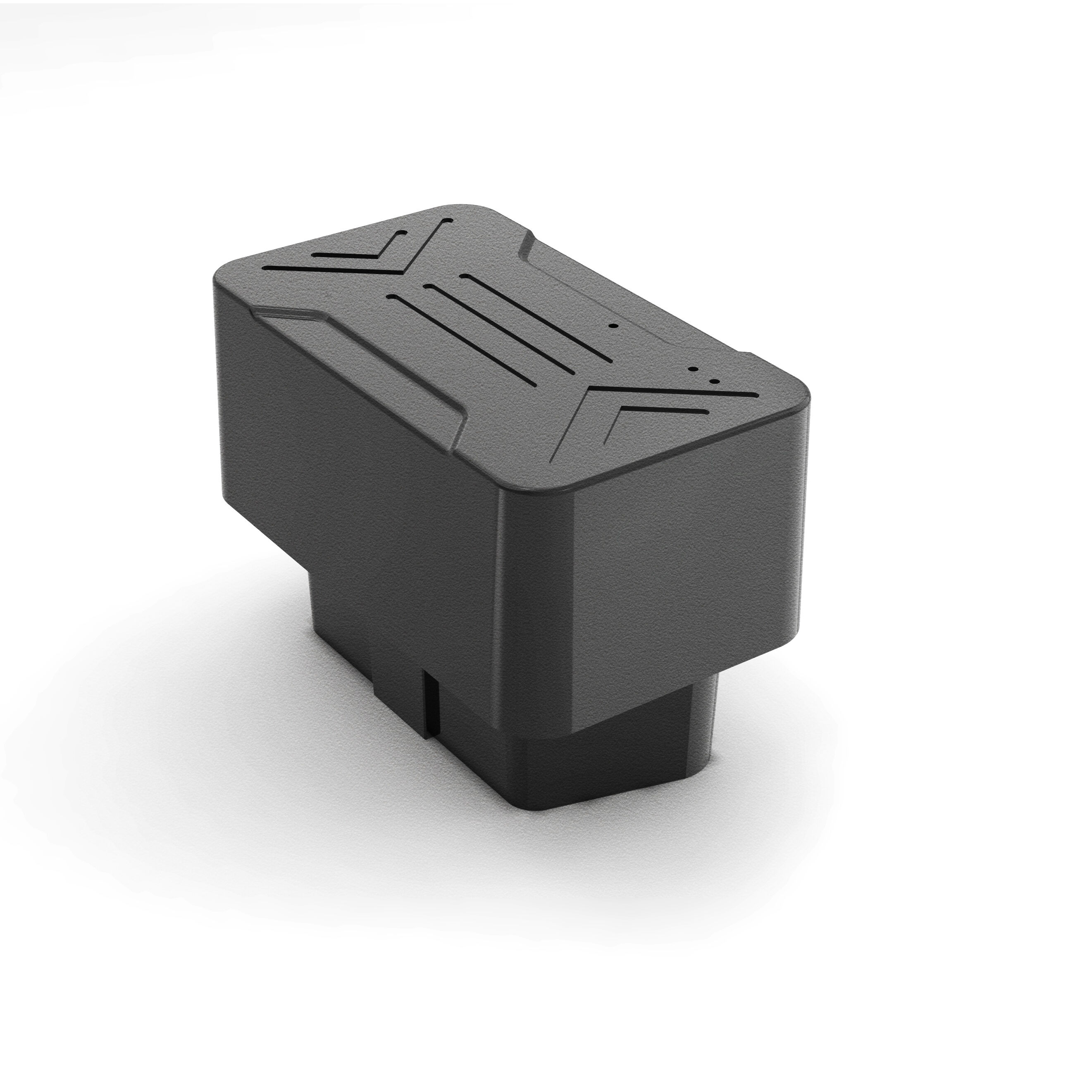

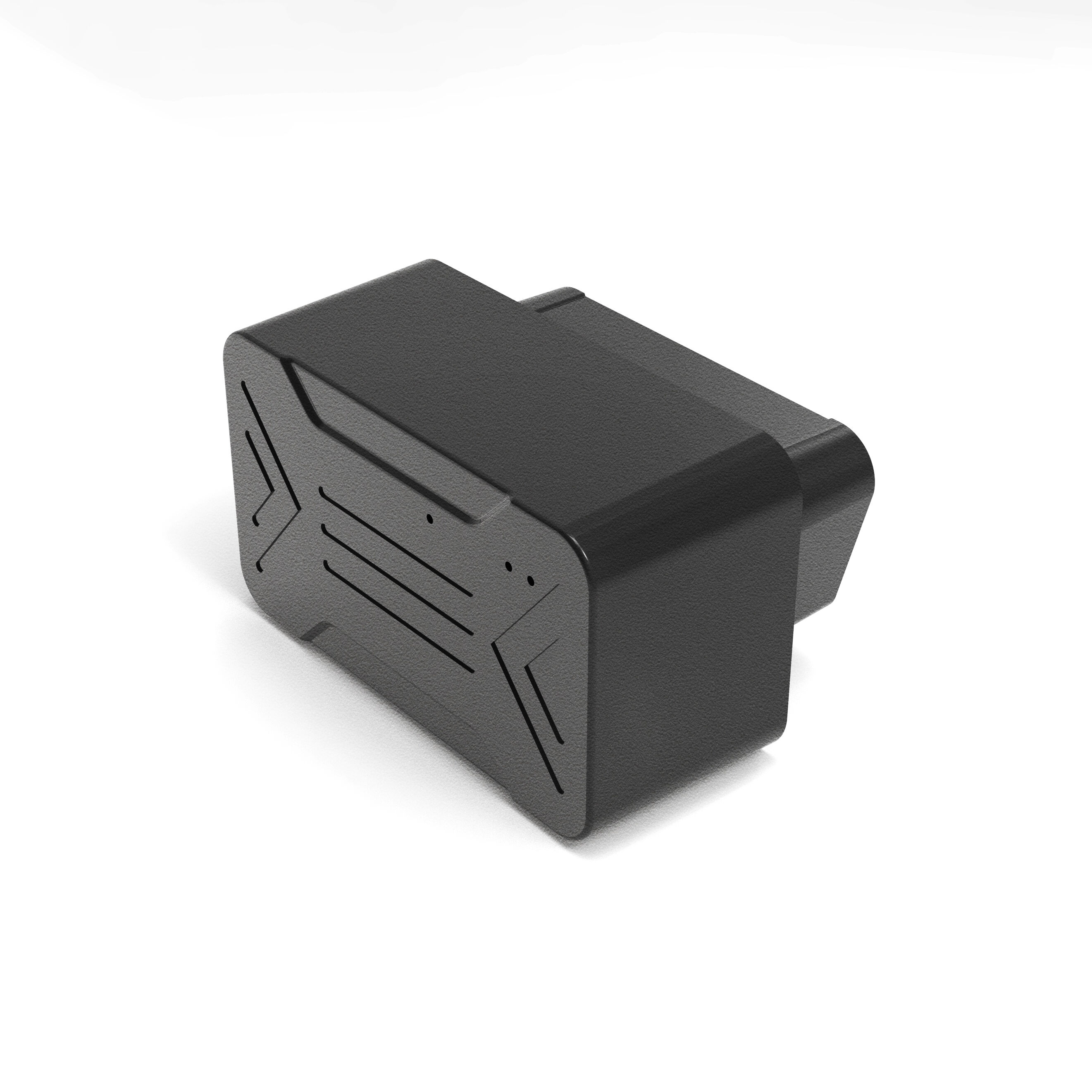

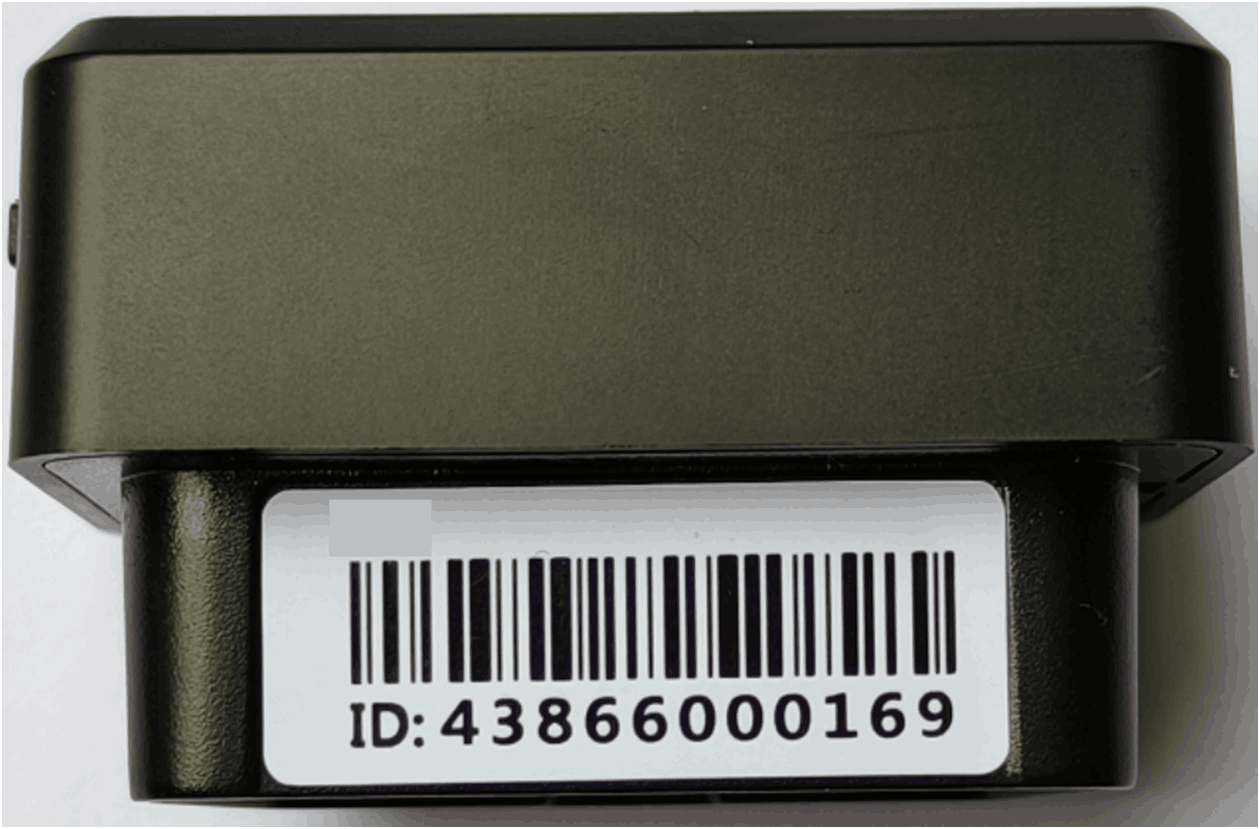

ISV-GTX02A, 2G OBD Car GPS Tracker,OBD Standard Interface, Support 1 Month History Playback , GPS+BDS+GLONASS, Movement Decection
$37.75
- Description
Description
| Model Number | iSV-GTX02A(2G)-#1652 | ||||
|---|---|---|---|---|---|
| Brand Name | iStarVideo | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:
iSV-GTX02A, 2G OBD Car GPS Tracker,OBD Standard Interface, Support 1 Month History Playback , GPS+BDS+GLONASS, Movement Decection
Main Feature:
* 2G Communication Mode, OBD Standard Interface
* ZKM AT6558 GPS Location IC
* GPS+BDS+GLONASS Simultaneous Signal Reception
* Built-in 60mAh/3.7V Battery, Support Working 1 Hours
* APP Application, iOS and Google Android
* Support Geo-Fence Alarm
* Support Over Speed Alarm
* Support Low Battery Alarm
* Support Movement Detection
* Support ACC Detection
* Support Kilometer Report
* Support Vibration Alarm
* Voltage: 9-35VDC
Specification:
| Model |
iSV-GTX02A(2G, OBD) |
|
| Hardware Pecifications |
Communication Mode |
2G |
| Communication Band |
GSM 850 / 900 / 1800 / 1900MHZ |
|
| Working Voltage |
9-35VDC |
|
| Average Current |
36mA@12VDC |
|
| RF Power Class |
Class12, TCP/ IP Build in GSM Module |
|
| RF Antenna |
FPC, Built in Machine |
|
| GSM Module |
Quectel MC25 |
|
| GPS Antenna |
25*25*4mm, Built in high-precision ceramic antenna |
|
| Backup Battery |
Polymer Battery, 6mAh/3.7VDC |
|
| Working Time |
1hours |
|
| LED Indicator |
2 LED: GPS-blue / GSM-red |
|
| SIM Card |
Micro SIM Card |
|
| Interface Definition |
RX/TX/Power/GND/ACC/Relay/SOS1/SOS2 |
|
| Working Temperature |
-20°C – 75°C |
|
| Operating Humidity |
5% to 95% |
|
| Net Weight |
30g |
|
| Product Size |
LxWxT: 47*33*28mm |
|
| Locate Information |
GPS IC |
ZKM AT6558 |
| Working Current |
23mA@3.3V (BDS+GPS) |
|
| Signal Reception |
BDS/GPS/GLONASS/GALILEO/QZSS/SBAS |
|
| Number of RF Channels |
BDS+GPS+GLONASS Simultaneous Reception |
|
| GPS Channels |
GPS:1575.42 / BDS:1561.098 / Galieo:1575.42 / Glonass:1602 MHz |
|
| Tracking Sensitivity |
-162 dBm |
|
| Acquisition Sensitivity |
-156 dBm |
|
| GPS Starting Time/TTFF |
Hot Start ≤ 1 sec(open sky） |
|
| Recapture: ≤ 1 sec |
||
| Cold Star: ≤ 32 sec(open sky) |
||
| GPS Position Accuracy |
<10m (1σ) |
|
| Timing Accuracy |
<30ns (1σ) |
|
| Update Frequency |
Max: 10Hz |
|
| Software Function |
Data Transmit |
TCP, SMS |
| Geo-Fence Alarm |
Support |
|
| Over Speed Alarm |
Support |
|
| Low Battery Alarm |
Support |
|
| Movement Detection |
Support |
|
| ACC Detection |
Support |
|
| Kilometer Report |
Support |
|
| Vibration Alarm |
Support |
|
| Service Platform |
History playback |
Support 1 Months (Refer to the actual support time of each service platform for details) |
| APP Application |
iOS and Android APP |
|
Shipping Information
| FOB Port | Shenzhen | ||||
|---|---|---|---|---|---|
| Weight per Unit | 0.03 Kilograms | ||||
| HTS Code | 8525.89.39 00 | ||||
| Export Carton Dimensions L/W/H | 15.0 x 8.0 x 5.0 Centimeters | ||||
