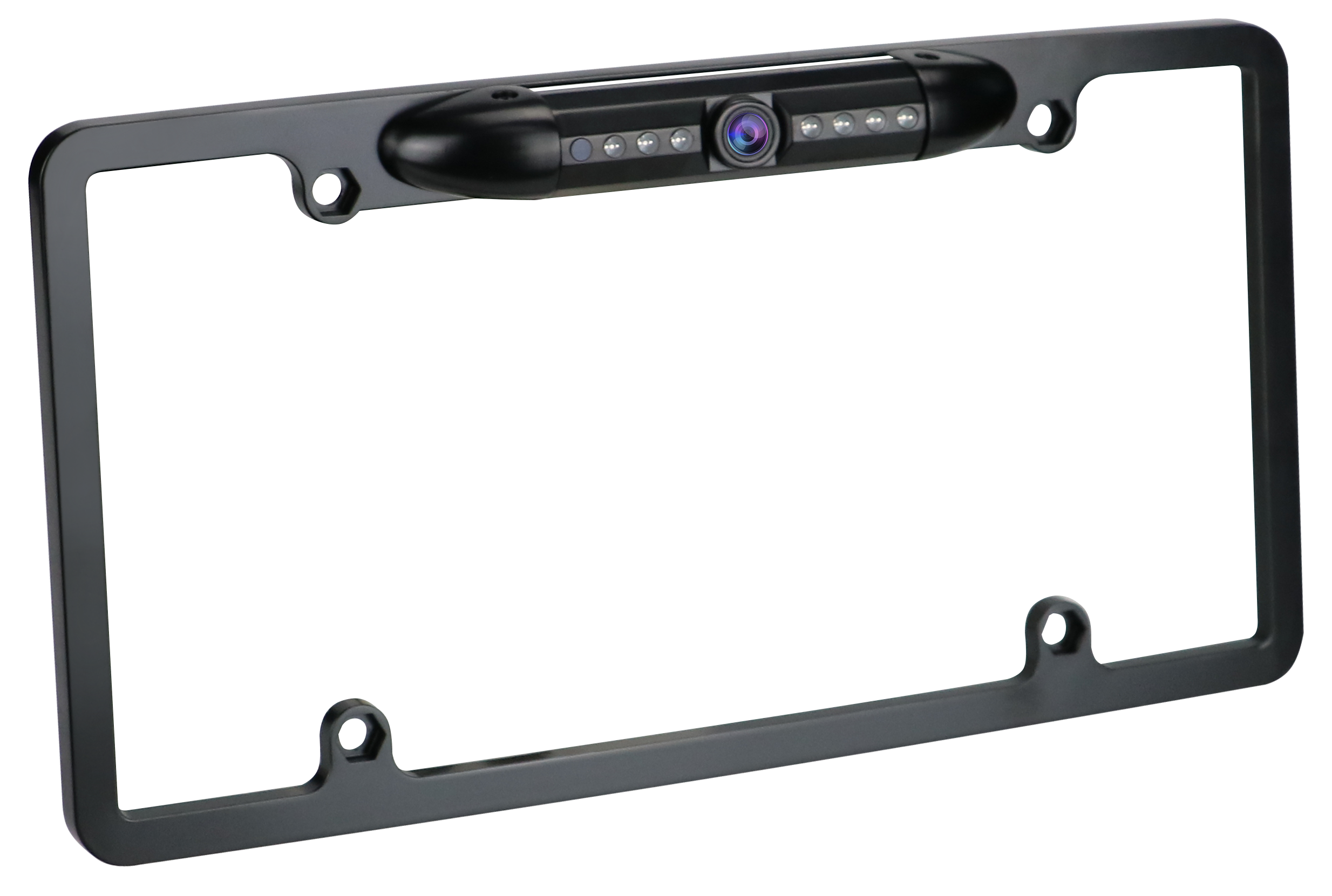

Car Reversing License Plate Frame Camera for American Market
$8.00
- Description
- Brand
Description
| Model Number | SW-US/CP#2-#7152 | ||||
|---|---|---|---|---|---|
| Brand Name | Car General/OEM | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:
Technical parameters:
Image sensor: 1/4 Cmos
Effective pixels: 688*488p
Resolution: 420TV lines
Lens angle: 2.8mm (170 degrees)
Horizontal viewing angle: 110 degrees
System: PAL/NTSC
Video output: RCA connector, 1.0vp-p, 75 ohms
Power: 12-24V
Night vision distance: 0-5m
Current consumption: 12V DC, 80mA
Operating temperature: -20 to +80°C (RH95% max)
Storage temperature: -40 to +80°C (RH95% max)
Wide-angle, waterproof and anti-shake

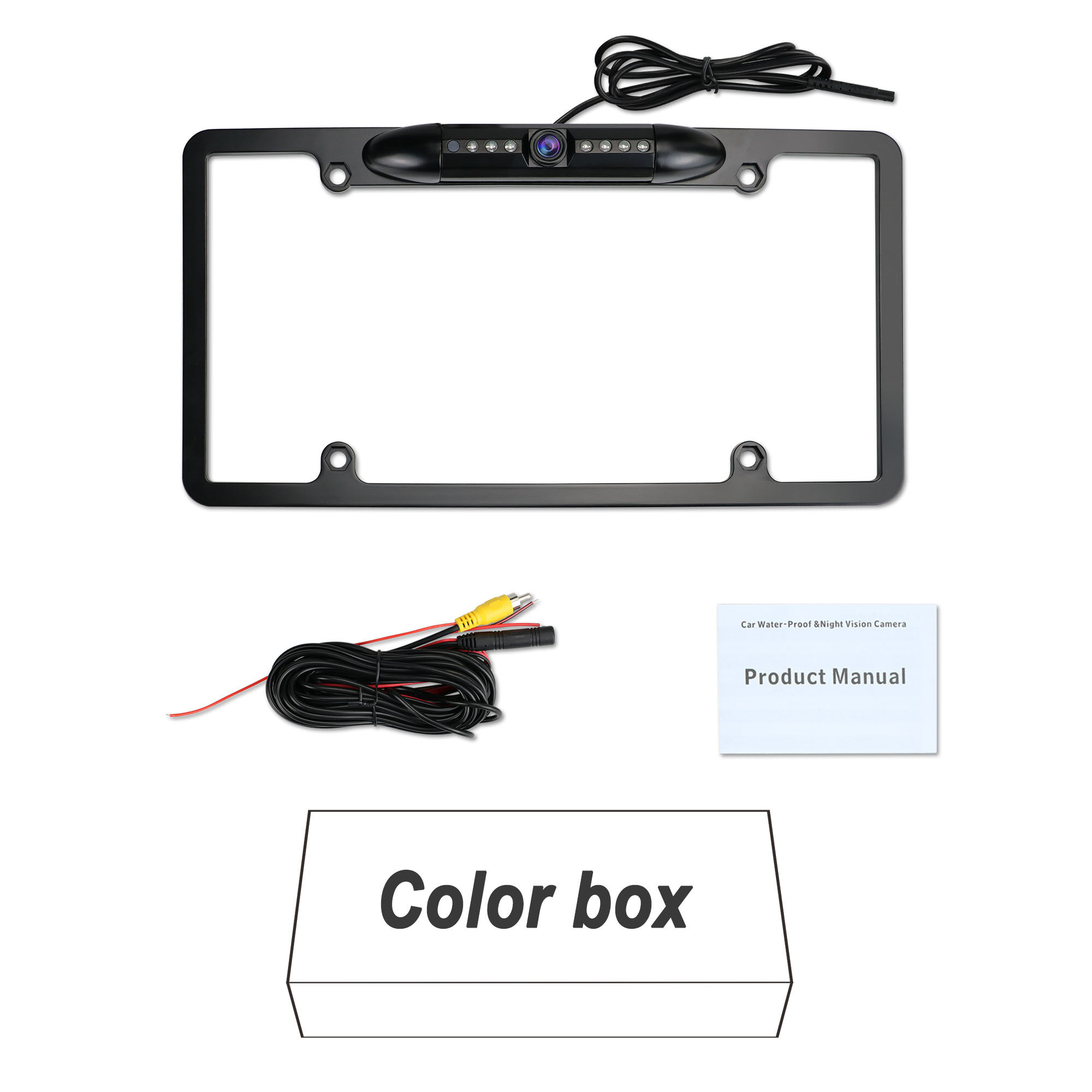

Packing includes:
1 x rear camera
1 x video cable
1 x 18.5mm drill
2 x screws for camera
Hanging or slotting is optional
Our services:
1) One-to-one service with efficient support
2) OEM and ODM: OEM packing no extra charges
3) Protection of your design and all your private information
4) We can supply unique items
5) Quality stability, can to provide certification of products (such as RoHS Directive-compliant, CE, FCC, ISO 9001:2008)
6) Convenient payment terms: PayPal, bank-in, T/T, Western Union
7) Speedy shipment: we can arrange the shipment within 5 business days
| Image sensor | 1/4 Cmos PC1030 |
| TV systems | NTSC/PAL |
| Effective pixels | 688*488p |
| Resolution | 420TV lines |
| Lllumination | 0.0lux / F1.2 (with LED) |
| Infrared distance | 0-5m |
| Lens angle | 170° |
| Video output | RCA connector, 1.0vp-p, 75 ohms |
| Power supply | 8-12V DC |
| Operating temperature | -20 to +80 (RH95%Max.) |
| Storage temperature | -40 to +80 (RH95%Max.) |
| waterproof | IP67 |
| Certificate Standard | CE | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the picture to see a larger one
|
||||
| Certificate Number | WST1502046E | ||||
| Validity | From 2015/02/04 To 2025/12/29 | ||||
| Issued By | Wstlab | ||||
Shipping Information
| FOB Port | Shenzhen | ||||
|---|---|---|---|---|---|
| Weight per Unit | 1.0 Kilograms | ||||
| HTS Code | 8525.80.13 90 | ||||
| Export Carton Dimensions L/W/H | 56.0 x 35.3 x 38.5 Centimeters | ||||
| Lead Time | 15–30 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 32.5 x 17.0 x 5.0 Centimeters | ||||
| Units per Export Carton | 20.0 | ||||
| Export Carton Weight | 1.0 Kilograms | ||||
