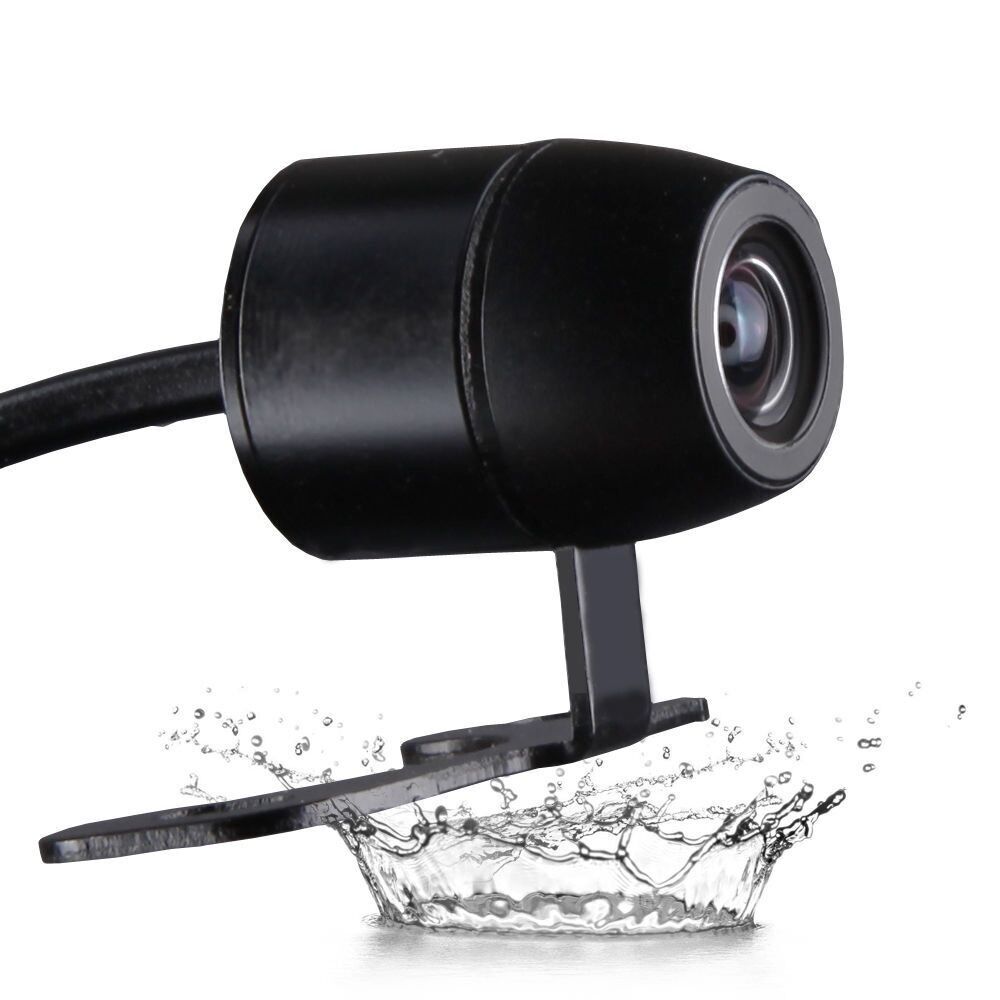

HD wide angle night vision waterproof car rear view reverse backup parking camera
$3.50
- Description
- Brand
Description
| Model Number | SW-185GH-#9404 | ||||
|---|---|---|---|---|---|
| Brand Name | Car General/ OEM | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
Key Specifications/ Special Features:
Best hidden multiple functions rearview camera for car reversing
- Image sensor: OV7974 HD CMOS (OV 7950 and PC7070 is optional)
- Signal system: NTSC/PAL
- Effective pixel: PAL: (H) 648 x (V) 488
- NTSC: (H) 648 x (V) 488
- Effective pixels: 680*512 or 580*492p
- Definition: 420TVL
- Mini illumination: 0.05lux
- Lens angle: 170°
- Sensitivity: 3.0V/lux-sec at 5600K
- Horizontal view angle: 90° and 170° is optional
- Video output: RCA connector, 1.0Vp-p, 75Ω
- Current consumption: 95mA maximum
- Power: DC 12V
- Night vision distance: 0-5m
- Operating temperature: -30 to +65°C (RH 95% max)
- Storage temperature: -40 to +80°C (RH 95% max)
- AGC: to be automatic
- White balance: to be automatic
- Backlight compensation: to be automatic

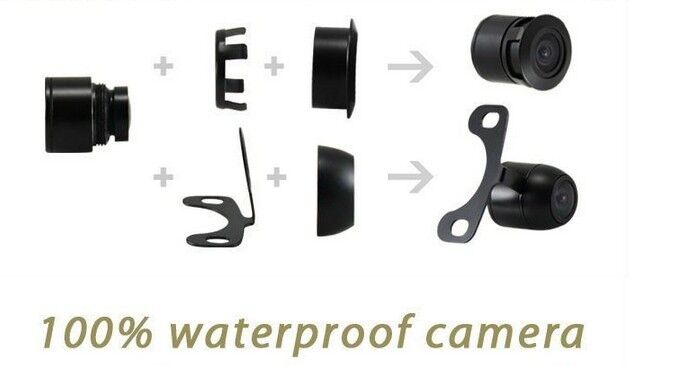

- Wide-angle, waterproof, anti-shake and anti-mist
- Parameters:
- 1) One-to-one service with efficient support
- 2) OEM and ODM: OEM packages no extra charges
- 3) Protection of your design and all your private information
- 4) We could supply unique items
- 5) Quality stability, can to provide certification of products (such as RoHS Directive-compliant, CE, FCC, ISO 9001:2008)
- 6) Convenient payment terms: PayPal, bank-in, T/T, Western Union and others
- 7) Speedy shipment: we could arrange the shipment within 5 business days
- Our services
Product Certifications
| Certificate Standard | CE | ||||
|---|---|---|---|---|---|
| Certificate Image |
Click on the picture to see a larger one
|
||||
| Certificate Number | WST1502046E | ||||
| Validity | From 2015/02/04 To 2025/12/29 | ||||
| Issued By | Wstlab | ||||
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
Shipping Information
| FOB Port | Shenzhen | ||||
|---|---|---|---|---|---|
| Weight per Unit | 0.2 Kilograms | ||||
| HTS Code | 8525.80.13 90 | ||||
| Export Carton Dimensions L/W/H | 56.0 x 35.3 x 38.5 Centimeters | ||||
| Lead Time | 15–30 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 12.0 x 10.0 x 8.0 Centimeters | ||||
| Units per Export Carton | 50.0 | ||||
| Export Carton Weight | 1.0 Kilograms | ||||
Main Export Markets
– Eastern Europe
– Mid East/Africa
– North America
– Western Europe
– Asia
– Australasia
– Central/South America
Brand
Shenzhen Sunway Industry Co. Ltd
Specs
